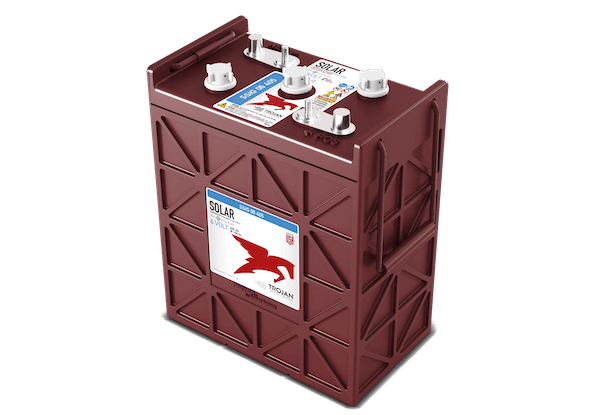

SSIG 06 405 6V Flooded Battery
SSIG 06 405 6V Flooded Lead Acid Battery
The Trojan SSIG 06 405 Deep Cycle Solar Flooded Lead Acid battery incorporates an advanced grid configuration optimized to enhance current flow through the grid network. The SSIG 06 405 battery provides exceptional battery performance, reduces downtime, and lowers overall maintenance costs for solar applications.
BAttery Quick Facts
Capacity Minutes
N/A
Capacity Amp-Hours
10-Hr Rate / 337 Ah 20-Hr Rate / 366 Ah 48-Hr Rate / 376 Ah 72-Hr Rate / 392 Ah 100-Hr Rate / 405 Ah
Energy (kWh)
2.43
Dimensions inches (mm)
Length / 11.66 (296) Width / 6.94 (176 Height / 14.37 (365)
Weight lbs. (kg)
98 (44)
Operating Temperature
-4°F to 113°F (-20°C to +45°C)
Features & Benefits
- Maxguard® XL Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
- Polyon™ ultra-rugged case design protects against damage caused by harsh environmental conditions and safeguards against potential acid leaks.
- Optimized paste formulation for deep cycle operation
- Flame arrestors
- Shock and vibration resistant
- Horizontal and vertical installations
- No watering required for a non-spillable experience.
- Less than 3% self-discharge per month
- 99% recyclable
TERMINAL TYPES
