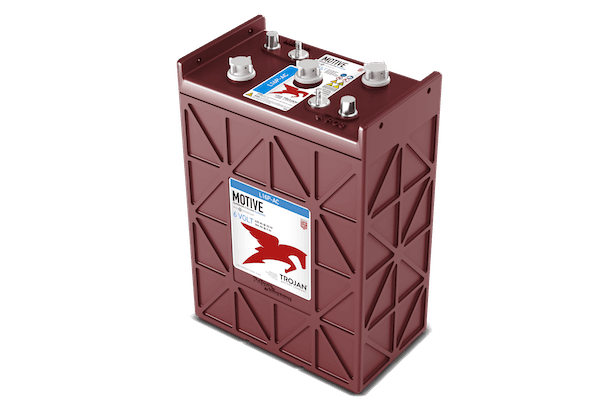

L16P-AC 6V Flooded Lead Acid Battery

Trojan's L16P-AC 6V Flooded Lead Acid battery offers high- to low-capacity points to meet your application needs for Floor Machines or Aerial Work Platforms. With Trojan's L16P-AC battery, you can expect maximum uptime and more productive hours on duty.

BAttery Quick Facts
Capacity Minutes

@25 Amps / 850 @75 Amps / 220

Capacity Amp-Hours

5-Hr Rate / 344 Ah 10-Hr Rate / 386 Ah 20-Hr Rate / 420 Ah 100-Hr Rate / 467 Ah

Energy (kWh)

2.80

Dimensions inches (mm)

Length / 11.66 (296) Width / 6.94 (176) Height / 16.74 (425)

Weight lbs. (kg)

114 (52)

Operating Temperature

-4°F to 113°F (-20°C to +45°C)

Features & Benefits

  • Maxguard® Advanced Design Separator and Alpha Plus® paste formulation for long life, industry-leading performance, and lower overall maintenance costs.
  • Two battery case options:
  • Polyon™ case for exceptional durability in heavy service applications
  • Generic case design for standard applications
  • Heat and corrosion resistant
  • With handles for easy carrying
  • HydroLink™ Single-Point Watering System available.
  • Only 5-15% self-discharge per month
  • 99% recyclable

TERMINAL TYPES

0

Automotive Post & Stud Terminal DT
